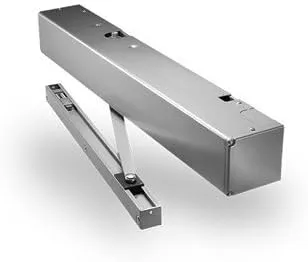

Designed for moderate to high traffic applications, this operator has a two-piece sub-assembly for easy installation and LCD screen for clear and accurate read-out of operator settings. This reliable unit ensures consistent opening and closing based on dual mode, electrohydraulic technology and is ideal for hospitals, office buildings, sports arenas or government facilities.

– LCD screen and joystick controller

– Interfaces with electric hardware

– Integrates with access control systems

• Operates as mechanical surface closer during close cycles or if power is turned off

– Critical for fire-rated doors

– Door can be opened manually if desired

• Obstruction Detection

– Door closes if it hits an obstruction while opening

– Door re-opens once if it hits an obstruction while closing

• Push and Go selector

– As the door is manually opened, the operator "senses" movement and opens door to the full-open position

• Open/Close obstruction detection

– Open: Door closes if it hits an obstruction while opening

– Close: Door re-opens (once) if it hits an obstruction while closing. If the door hits the obstruction again, the door will rest against the obstruction until it is removed.

– Delays operator opening

• Vestibule delay adjustment
• Hold open delay adjustment
• Single Pole Double Throw (SPDT) relay output

– SPDT relay output time adjustment

– SPDT alarm output

• Blow open for smoke ventilation
• Presence detector input
• Selector mode switch

– Off - Disables signal inputs except blow open

– On - Activates signal inputs

– Infinite Hold Open - Door will hold open at set position until power is turned off
